DOCK RAMPS – CANADA
Industrial Dock Ramps for Safe, Efficient Loading Operations
Heavy duty steel dock ramps designed for warehouses, loading docks, trucking operations, and freight handling across Canada. Built to handle daily forklift and pallet truck traffic with confidence.
PRODUCT SPECIFICATIONS
Dock Ramp Specifications and Configurations
Our dock ramps are engineered from heavy duty structural steel and built to withstand continuous forklift, pallet truck, and materials handling traffic. Available in a range of load capacities, widths, and lengths to fit the specific height and layout requirements of your loading dock or warehouse operation.
LOAD CAPACITY
Available in standard configurations from 10,000 lbs to 80,000 lbs capacity. Custom rated options available based on your equipment and load requirements.
DECK WIDTH
Standard widths from 60 inches to 96 inches. Custom widths available for oversized forklifts or wide-load applications.
RAMP LENGTH
Available in lengths from 8 feet to 30 feet. Length is selected based on your dock height and the required entry angle for your forklift or equipment.
STEEL CONSTRUCTION
Built from structural steel with welded frame construction. Designed for long-term heavy traffic use in industrial and outdoor environments.
DECK SURFACE
Open bar grating or checker plate anti-slip decking options. Provides secure footing and drainage for all weather and indoor environments.
CONFIGURATIONS
Available as stationary bolt-down units or adjustable height models with hydraulic or mechanical leveling. Portable units available for mobile loading applications.
USE CASES
Where Dock Ramps Are Used
Dock ramps are the critical connection point between ground level, truck beds, containers, and warehouse floors. Here are the most common working environments where our dock ramps are deployed daily.
Truck-to-Dock Loading
Bridge the gap between a truck bed and your loading dock floor. Dock ramps provide stable, forklift-rated access for loading and unloading trailers at fixed dock bays.
Container Unloading
Access ISO shipping containers at grade level or elevated positions. Dock ramps allow forklifts and pallet jacks to enter containers safely without a permanent dock structure.
Warehouse Material Flow
Connect different floor levels, mezzanines, or loading zones within a warehouse to keep materials and equipment moving efficiently between operational areas.
Forklift Bridging Operations
Provide a rated steel bridge for forklifts crossing between dock floors and trailer beds, flatbed trucks, or outdoor yard areas where a level surface is required.
SAFETY & ENGINEERING
Safety Features Engineered Into Every Dock Ramp
Every dock ramp we supply is designed with the safety requirements of daily industrial operations in mind. These features are standard on our dock ramp models and are critical for maintaining safe loading conditions for operators and equipment.
LIP PLATE DESIGN
The formed steel lip plate bridges the gap between the ramp deck and the truck bed or dock floor, providing a smooth and secure transition for forklifts and loaded pallet trucks.
SAFETY CURBS AND SIDE RAILS
Welded steel safety curbs run the full length of the ramp deck to prevent wheels from drifting off the edge. Side rails are standard on elevated configurations.
LOAD RATED CONSTRUCTION
Every dock ramp is rated to a specific load capacity and stamped accordingly. Load ratings are calculated for dynamic forklift loads, not just static weight – ensuring real-world safety under operating conditions.

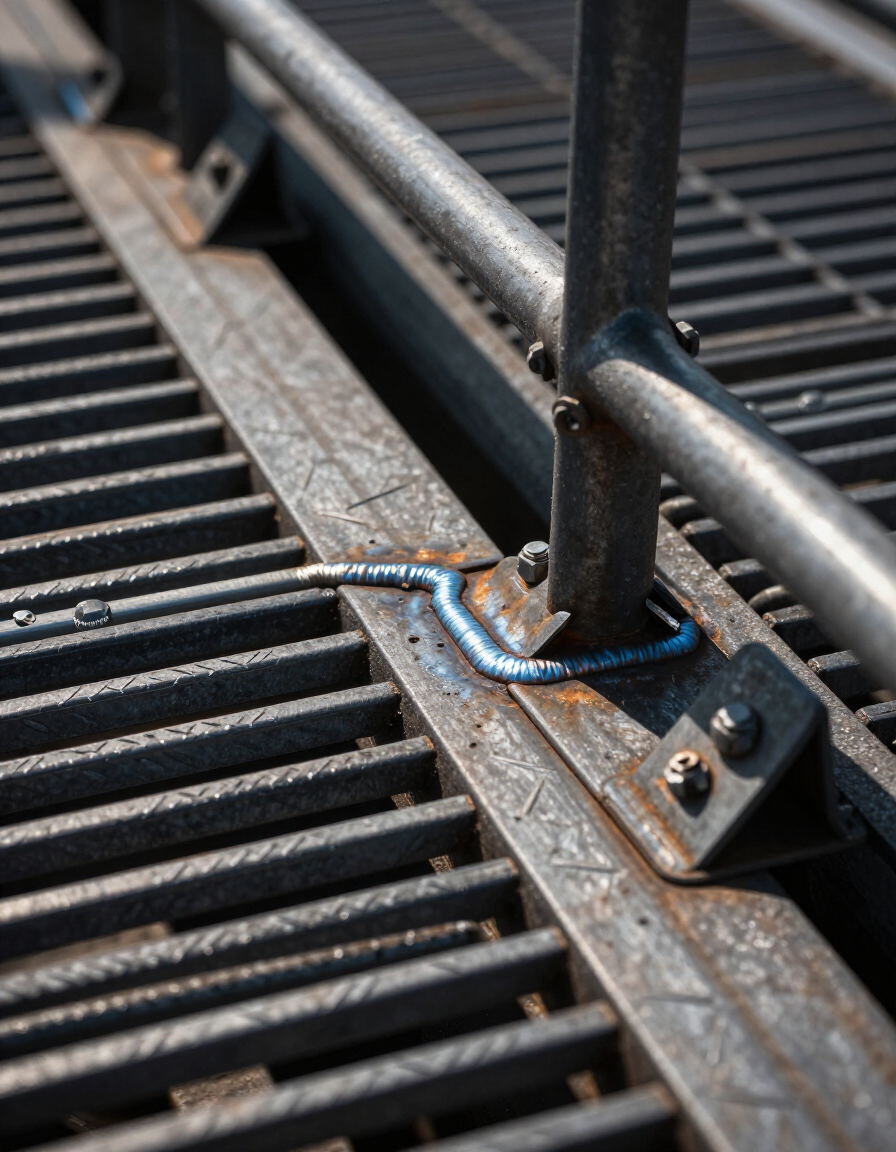

ANTI-SLIP DECK SURFACE
Open bar grating or checker plate surfaces provide reliable grip for forklift tyres, pallet jacks, and foot traffic across wet, dusty, or high-traffic conditions.
STRUCTURAL STEEL FRAME
Heavy structural steel welded frames resist flex and deflection under maximum rated loads, maintaining a stable and level working surface throughout the ramp's service life.
FREQUENTLY ASKED QUESTIONS
Common Questions About Dock Ramps
Buyers often have specific questions about load capacity, sizing, and compatibility before requesting a quote. Here are answers to the most common decision-blocking questions.
What load capacity do I need for my dock ramp?
Capacity depends on your heaviest loaded forklift or equipment combined with its rated load. As a general rule, select a ramp rated at least 25% above your maximum expected load to allow for dynamic forklift forces. We can help you calculate the right rating when you submit a quote request.
How do I measure dock height for a dock ramp?
Dock height is measured from the ground surface to the top of the loading dock floor or truck bed surface. A standard North American dock is approximately 48 to 52 inches from grade. Your ramp length is determined by this height and the maximum allowable slope for your forklift.
Will a dock ramp work with different truck heights?
Fixed dock ramps are sized for a specific height range. If your operation receives trucks of varying heights, an adjustable or hydraulic dock ramp may be a better fit. We offer both stationary and adjustable configurations to match your operational needs.
What are the lead times for dock ramps?
Standard configuration dock ramps are typically available faster than custom fabricated units. Lead times vary based on specifications, load ratings, and current stock. Contact our team when you submit a quote request and we will provide current delivery timelines for your location in Canada.
Can dock ramps be custom sized?
Yes. We offer custom fabrication for non-standard widths, lengths, load capacities, and surface configurations. If your site has unusual height requirements or oversized equipment, our team can design a dock ramp to fit. See our Custom Ramp Solutions page for more detail.
GET YOUR DOCK RAMP QUOTE
Ready to Spec Your Dock Ramp?
Tell us your dock height, required capacity, equipment type, and location. Our team will review your request and respond with pricing, lead times, and configuration recommendations suited to your operation.
